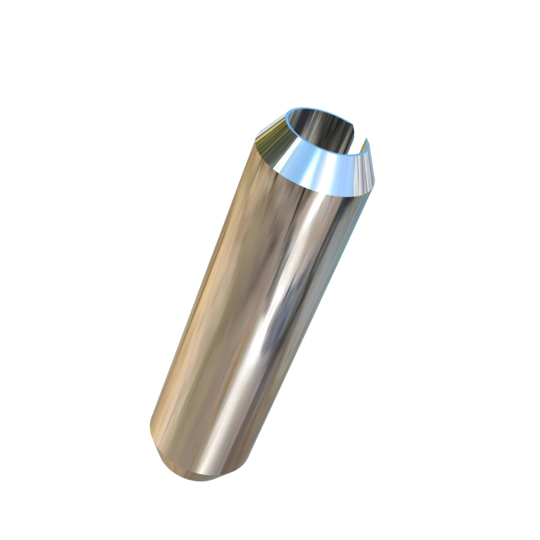

    Item # 0044418: 1/16 X 1/4 inch Allied Titanium Spring Pin, Grade 2 (CP) Titanium with Polished Finish
Titanium 1/16 X 1/4 inch Allied Titanium Spring Pin
  A spring pin is a type of hardware fastener that mechanically links two items together. The spring pin goes by a variety of names, including spring tension pin, slotted spring pin, sellock pin, and roll pin. Known for their durability and strength, spring pins rarely budge out of place and can bear up under immense pressure.

The traditional spring pin is tube-shaped with a split down the middle. The diameter of the pin is a bit larger than the hole into which it fits. Once it is driven into the hole, the spring pin pushes against the perimeter of the hole, creating pressure, or a spring-like force. This action results in a strong surge of friction that locks the pin in place tightly and securely.

Titanium spring pins are a huge step forward for industry, being stronger, lighter and corrosion free. These spring pins are TRUE TITANIUM(TM), specifically commercially pure Grade 2 (CP) titanium.


TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.
Price: Call (302) 249-3295
Unit: Each
Min. Order Qty: 400
1st Qty Break: 2000
1st Break Price: Call (302) 249-3295
2nd Qty Break: 5000
2nd Break Price: Call (302) 249-3295
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 0.0000
Measure: Inches
Diameter: 0.0625
Grip Length:
Overall Length: 0.25
Group: Fasteners
Category: Fastener, Pin
Sub Category: Spring Pin
Tolerance: +/- 0.001 inch
UPD # Ti2FPSPPNI0.063X0.25P
Index: Pin, Spring
Meets ANSI: B18.8.2
Meets ASME: B18.8.2
