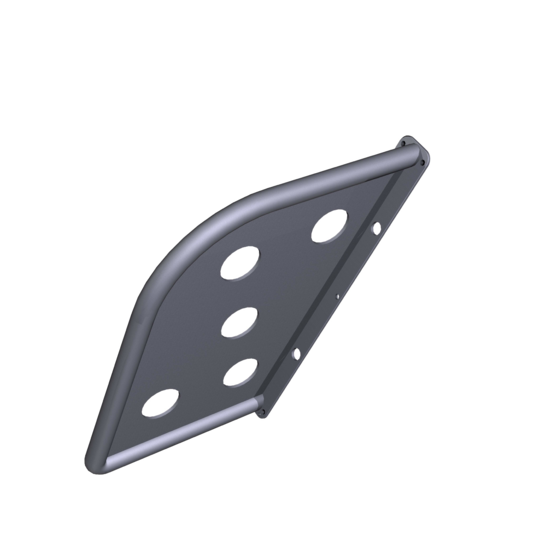

    Item # 0076314: Allied Titanium Bolster Side Support Frame (double sided), Grade 5 (Ti-6Al-4V) Titanium with Sandblasted Finish
Titanium Allied Titanium Bolster Side Support Frame (double sided)
  This is a lightweight and incredibly strong double sided bolster side support frame for high speed offshore power vessels. It's primary purpose is to prevent people from being thrown out of the boat at high speeds in heavy seas. The frame is fabricated from 4mm Grade 5 Titanium plate and 1 inch OD X 0.065 inch wall thickness Grade 2 tubing and is designed to bolt onto a back plate that is angled 10 degrees aft. It is to be covered on both side with one inch shock absorbing foam. All joints are welded with wire feed TIG.

TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.
  Made in USA
Price: Call (302) 249-3295
Unit: Each
Min. Order Qty: 1
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 2,061.4122
Measure: Metric
Diameter or Thickness: 50.8
Pitch, Grip Length or Width: 308.9
Length: 465.8
Group: Marine
Category: Seat
Sub Category: Bolster
Tolerance: +/- 1.50 mm
UPD # Ti5SETBOLSM50.8X308.9X465.8B
Index: Bolster
