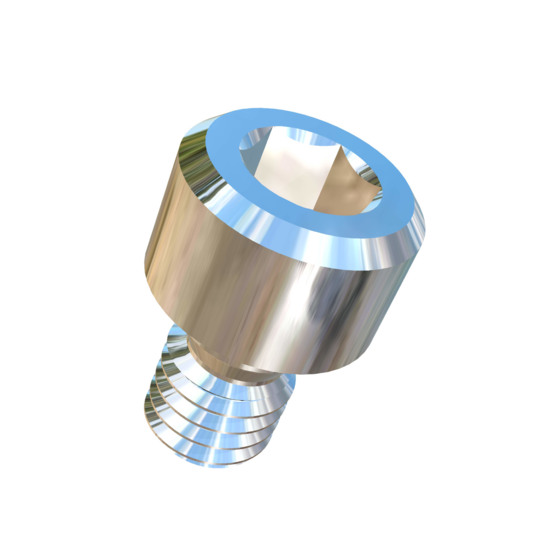

    Item # 0020185: M6-1 Pitch X 9mm socket head Allied Titanium Cap screw with a 2mm non-threaded shank length, AMS-4967 G (Ti-6Al-4V) Titanium with Required Specification Finish
Titanium M6-1 Pitch X 9mm socket head Allied Titanium Cap screw with a 2mm non-threaded shank length
  1. Thread : ISO Metric Thread as per ISO 68
2. Tolerance : 4h as per ISO 965
3. Fastener: Grade A as per ISO4762
4. Surface finish : Before protection Ra max. 3.2 pm
5. Finish: Anodised and coated with Molybdenum –di-sulphide (MoS2) dry lubricant.
6. End of fastener : Chamfered as per ISO4753
7. Material : Ti – 6Al-4V as per AMS 4967 G
8. Ultimate Tensile strength : 1100 MPa (Minimum)
9. Yield strength : 900 MPa
10. Acceptance inspection : ISO3269, Test method as per ISO898
11. Tolerance for fastener : As per ISO4759/1
12. Acceptable surface discontinuities : As per ISO6157-3
13. Magnetic cleanliness : Non – magnetic
14. Sampling procedure : As per ISO3269-1984 (E)
Price: Call (302) 249-3295
Unit: Each
Min. Order Qty: 200
1st Qty Break: 2000
1st Break Price: Call (302) 249-3295
2nd Qty Break: 5000
2nd Break Price: Call (302) 249-3295
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 0.0027
Measure: Metric
Diameter: 6
Pitch: 1
Length: 9
Group: Aerospace
Category: Fastener, Screw
Sub Category: Socket Head Cap Screw
Tolerance: +0/-0.07 mm
UPD # Ti4967FSSHCSM6-1X9Q
