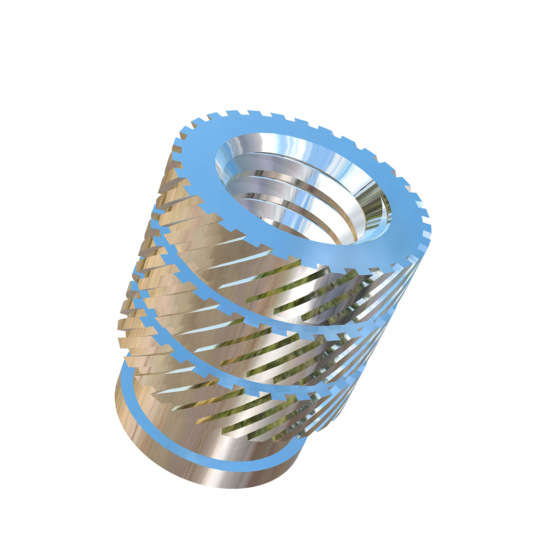

    Item # 0076997: Knurled Allied Titanium Threaded Insert with M3-0.5 pitch Internal Threads, Grade 5 (Ti-6Al-4V) Titanium with Polished Finish
Titanium Knurled Allied Titanium Threaded Insert with M3-0.5 pitch Internal Threads
  A thread insert is a fastener component that can be used as an alternative to cutting threads into a material. These components can be molded into place when an object is created or installed after the fact. Thread inserts can be screwed or pressed into blank holes bored into the object to be threaded. A thread insert's simple purpose is to allow a stud or bolt to be screwed into place. Thread inserts can be installed into existing objects or used to repair damaged threads. It is commonplace to secure thread inserts with epoxy. When inserts are glued or fixed into place with epoxy, they are seldom removed. For this reason, it is important to use a material that will stand the test of time.

Titanium thread inserts are not only stronger and corrosion free, they also weigh nearly half as much as stainless steel. The weight savings on a single insert may not seem like a lot, however when hundreds or thousands of inserts are used, the weight savings cannot be denied. Though these simple inserts can be found to be made from many different materials, none can claim to be as strong, as light, or as corrosion resistant as titanium.

TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.
Price: Call (302) 249-3295
Unit: Each
Min. Order Qty: 200
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 0.0000
Measure: Metric
Diameter: 3
Pitch: 0.5
Length: 5.74
Group: Fasteners
Category: Fastener, Insert
Sub Category: Knurled Threaded Insert
Tolerance: +/- 0.13 mm
UPD # Ti5INSKTINM3-0.5X5.74P
Index: Insert, Threaded
