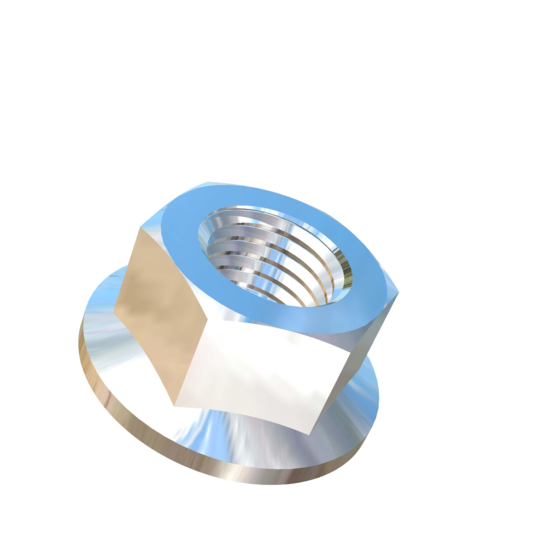

    Item # 0022865: M12-1.5 Pitch Allied Titanium Hex Flange Nut, Grade 5 (Ti-6Al-4V) Titanium with Polished Finish
Titanium M12-1.5 Pitch Allied Titanium Hex Flange Nut
  A flange nut is a type of nut that has a wide flange on the bottom that acts as built in washer. This serves to distribute the pressure to a larger bearing surface of the nut over the part being secured, reducing the chance of damage to the part.

These flange nuts are Grade 5 (Ti-6Al-4V) titanium and are TRUE TITANIUM(TM). They are about 3 and a half times stronger than stainless steel, 44% lighter and completely corrosion free, even in saltwater. These , aerospace grade nuts have a minimum yield strength of 128,000 psi (880 Mpa). If you are a race car driver, these are the flange nuts you want holding your car together. If you are a sailboat cruiser, these are the nuts you want holding your rig up.

TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.
Price: Call (302) 249-3295
Unit: Each
Min. Order Qty: 100
1st Qty Break: 1000
1st Break Price: Call (302) 249-3295
2nd Qty Break: 2500
2nd Break Price: Call (302) 249-3295
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 0.0118
Measure: Metric
Diameter: 12
Pitch: 1.5
Length:
Group: Fasteners
Category: Fastener, Nut
Sub Category: Hex Flange Nut
Tolerance: +0/-0.27 mm
UPD # Ti5FNHXFNM12-1.5P
Index: Nut, Hex Flange, Grade 5 Titanium
Meets IS0: 4161
Meets DIN: 6923
