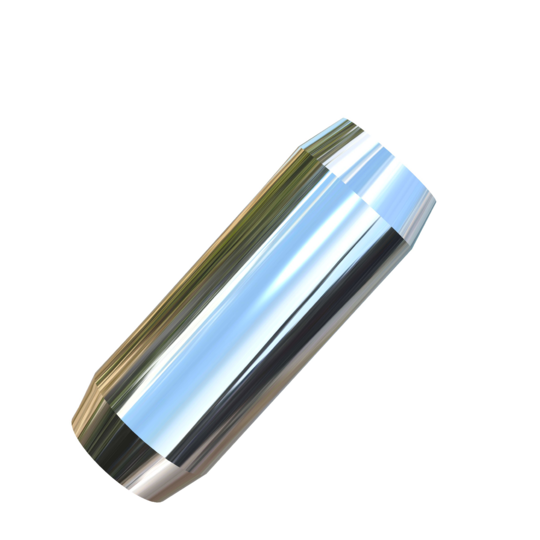

    Item # 0107088: 3/16 X 1/2 inch Allied Titanium Dowel Pin (With Certs and CoC), Grade 5 (Ti-6Al-4V) Titanium with Polished Finish
Titanium 3/16 X 1/2 inch Allied Titanium Dowel Pin  (With Certs and CoC)
  Allied Titanim dowel pins are currently in use in robots, drones and precision mechanical devices all over the planet and in outerspace. These dowel pins are fabricated from grade 5 (6Al-4V) titanium and are corrsion free, even in saltwater. Grade 5 titanium has a yield strength of 180,000 psi (880 Mpa) and an ultimate tensile strength of 138,000 psi (950 MPa).

They are Aerospace, Defense and Space quality and come with full mechanical and Chemical Certification as well as a Certificate of Conformance (CoC) to verify that they meet the specifications on the Unique Part Descriptor (UPD) Sheet. If you are engineering something that needs the ultimate in strength, while still being corrosion free and lightweight, then these dowel pins will work nicely.

If you can't find exactly what you need, feel free to contact us as we manufacture all kinds of custom dowel pins for our customers all over the world.

TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.
Price: Call (302) 249-3295
Unit: Each
Min. Order Qty: 77
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 0.0000
Measure: Inches
Diameter: 0.1875
Grip Length:
Overall Length: 0.5
Group: Fasteners
Category: Fastener, Pin
Sub Category: Dowel Pin
Tolerance: +0.002/-0 inch
UPD # CTi5FPDOWLI0.1875X0.5P
Index: Pin, Dowel
